Description

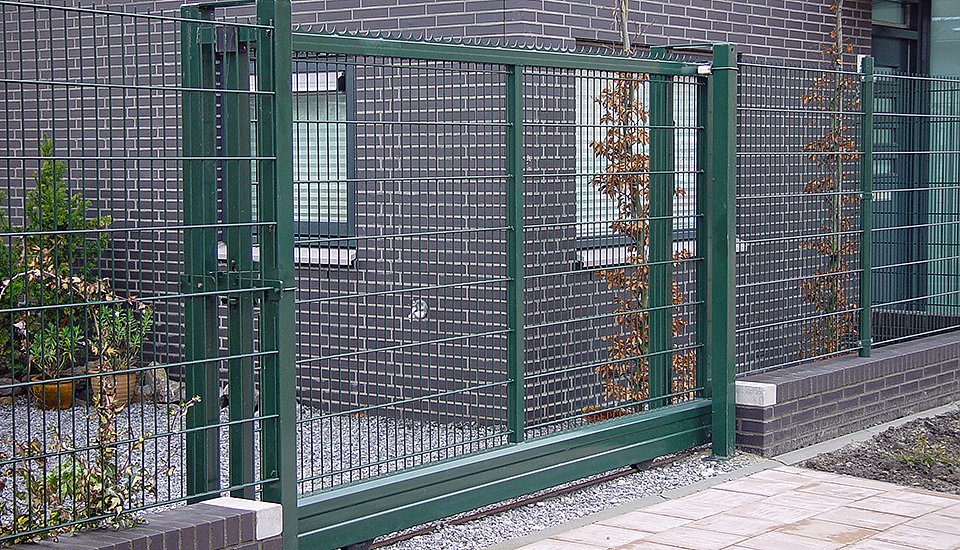

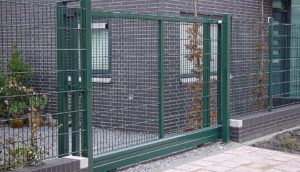

Soubassement en profil d’acier 200/100 mm laminé à froid avec le dessus incliné et profilé longitudinalement des 2 côtés.
Fermeture papillon avec serrure à cylindre inoxydable 3 clés.
2 galets de dia 180mm, incorporés dans le soubassement.
Rail de guidage en profil acier spécial type S, poids 7kg/ml, à encastrer dans la fondation en béton.
Jeu au sol – 6 cms.
Panneaux en treillis soudés fixé dans le cadre.
Galvanisé à chaud et thermolaqué par poudre polyester.

Informations complémentaires

Dimensions

L, 4.00/4.17m x H, 1,00m, L, 4.00/4.17m x H, 1,25m, L, 4.00/4.17m x H, 1,50m, L, 4.00/4.17m x H, 1,80m, L, 4.00/4.17m x H, 2,00m, L, 4.00/4.17m x H, 2,25m, L, 4.00/4.17m x H, 2,50m, L, 5.00/5.07m x H, 1,00m, L, 5.00/5.07m x H, 1,25m, L, 5.00/5.07m x H, 1,50m, L, 5.00/5.07m x H, 1,80m, L, 5.00/5.07m x H, 2,00m, L, 5.00/5.07m x H, 2.25m, L, 5.00/5.07m x H, 2.50m, L, 6.00/6.12m x H, 1,00m, L, 6.00/6.12m x H, 1,25m, L, 6.00/6.12m x H, 1,50m, L, 6.00/6.12m x H, 1,80m, L, 6.00/6.12m x H, 2,00m, L, 6.00/6.12m x H, 2.25m, L, 6.00/6.12m x H, 2.50m, L, 7.00/7.17m x H, 1,00m, L, 7.00/7.17m x H, 1,25m, L, 7.00/7.17m x H, 1,50m, L, 7.00/7.17m x H, 1,80m, L, 7.00/7.17m x H, 2,00m, L, 7.00/7.17m x H, 2.25m, L, 7.00/7.17m x H, 2.50m, L, 8.00/8.07m x H, 1,00m, L, 8.00/8.07m x H, 1,25m, L, 8.00/8.07m x H, 1,50m, L, 8.00/8.07m x H, 1,80m, L, 8.00/8.07m x H, 2,00m, L, 8.00/8.07m x H, 2.25m, L, 8.00/8.07m x H, 2.50m, L, 9.00/9.12m x H, 1,00m, L, 9.00/9.12m x H, 1,25m, L, 9.00/9.12m x H, 1,50m, L, 9.00/9.12m x H, 1,80m, L, 9.00/9.12m x H, 2,00m, L, 9.00/9.12m x H, 2.25m, L, 9.00/9.12m x H, 2.50m, L, 10.00/10.17m x H, 1,00m, L, 10.00/10.17m x H, 1,25m, L, 10.00/10.17m x H, 1,50m, L, 10.00/10.17m x H, 1,80m, L, 10.00/10.17m x H, 2,00m, L, 10.00/10.17m x H, 2.25m, L, 10.00/10.17m x H, 2.50m, L, 11.00/11.07m x H, 1,00m, L, 11.00/11.07m x H, 1,25m, L, 11.00/11.07m x H, 1,50m, L, 11.00/11.07m x H, 1,80m, L, 11.00/11.07m x H, 2,00m, L, 11.00/11.07m x H, 2.25m, L, 11.00/11.07m x H, 2.50m, L, 12.00/12.12m x H, 1,00m, L, 12.00/12.12m x H, 1,25m, L, 12.00/12.12m x H, 1,50m, L, 12.00/12.12m x H, 1,80m, L, 12.00/12.12m x H, 2,00m, L, 12.00/12.12m x H, 2.25m, L, 12.00/12.12m x H, 2.50m

Couleur

Vert 6005, Vert 6009, Noir 9005, Gris 7016, Gris 7030, Gris 7039, Blanc 9010
